Bodygard water isolation for ceramics
Bodygard Textile waterproofing membrane for underlayment of ceramics/ water insulation fabric / water insulation membrane
Bodygard Textile Waterproofing Products
Bodygard is an insulation membrane for waterproofing the surfaces of ceramic surfaces. In bathrooms, shower systems, underlayment of balconies and in the catamas, ceramic underlayment is applicated to provide water isolation and insulation.
.jpg)
Usage areas

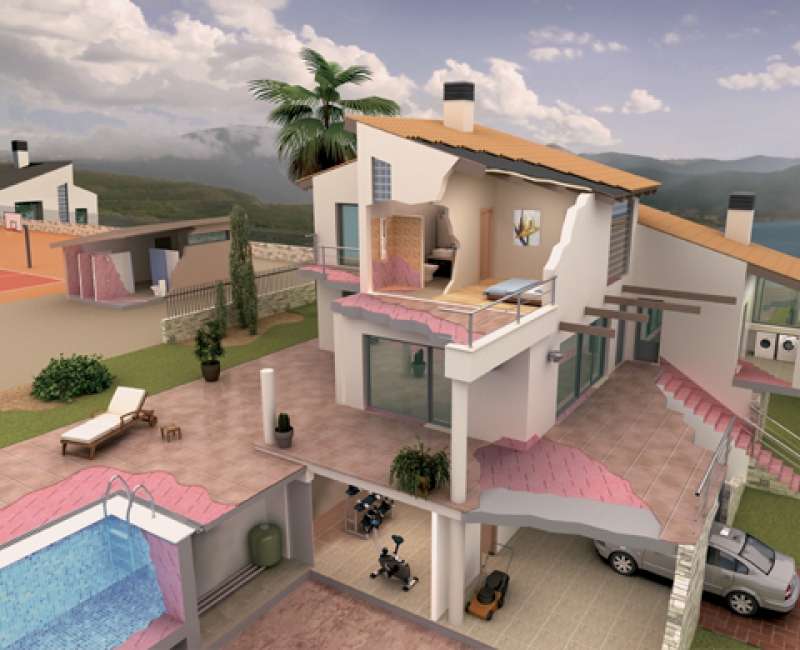

The Bodygard insulation membrane provides safe insulation of cracks under ceramic and stone coatings/tiles in wet areas. It is used both on floors and walls. It is especially suitable for walls made of gypsum panels and for all smooth surfaces that can carry the ceramics on top.
Method of Application
The surface to be treated must be a carrier and dry, with no dust or dirt on it. If corners are broken, they must be repaired beforehand and the recessed protrusions on the surface should be smoothed. Plaster and similar parts separated from the surface should be scraped. A ceramic adhesive C2 based is applied onto the carrier surface with a 4 mm trowel (to protrude about 10 cm from the insulation membrane). The insulation membrane, previously cut to the required dimensions, is placed on the wet adhesive and the surface is smoothed with a smoothing agent. At this time, the mortar under the bodygard insulation membrane must be crushed equally. The next membrane piece is glued in the next or next way. If the insertion is made to the lower end, a tape with a width of 10 cm is cut on the joint and adhered with a mortar. The overlay should be at least 4 cm.
Roll Measurements
- Width: 150cm
- Length: 100m
Features
- High vapor diffusion density
- Waterproof
- High tensile strength
- Alkali resistance
- High strength
- High adherence with ceramic adhesives
- High adherence with cement plaster
Technicial Specifications
- Width: Standard 150cm
- Length: Standard 100mt
- Color: Standard blue
- Weight: 240 gr / m²
- Thickness: 0.65 mm
